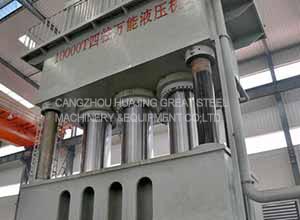

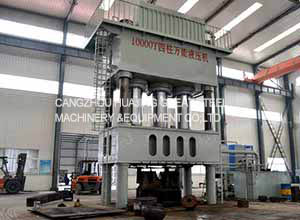

10000T Hydraulic Press Machine



hydraulic press machine



four-column hydraulic press machine



 Equipment Uses:



The equipment is equipped with special



pipe use straightening workbench, suitable



for straightening kinds of steel pipes.



Equipped



with elbow reshaping moulds, it can also



reshape kinds of elbows.



Description

hydraulic press machine
four-column hydraulic press machine

1. Equipment Uses:
The equipment is equipped with special pipe use straightening workbench, suitable for straightening kinds of steel pipes. Equipped

with elbow reshaping moulds, it can also reshape kinds of elbows.


2. Main Technical Parameters (list):

NO.

Item

Unit

Parameters

1

nominal force(max straightening force)

KN(t)

1000~30000 (100~3000)

2

hydraulic system max working pressure

MPa

25

3

sliding block max stroke

mm

600~1620

4

roller movement max stroke

mm

100

5

max distance from sliding block to workbench surface

mm

1000~1620

6

the distance between center distance of straightening workpiece and ground

mm

900~1200

7

workbench effective area

length:3000~6000mm,width:600~1600mm

8

stand column center distance

left&right

mm

600~1600

front&back

mm

800~1000

9

the distance of workbench away from ground

mm

650

10

motor total power

KW

15~110

11

floor space

left&right

mm

4000

front&back

mm

3150×6150
