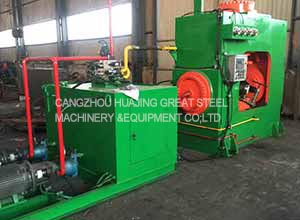

114 Tee Making Machine

Technical parameters



Max process Tee—————114mm



Min process Tee—————21mm



Max thickness ————-5mm



Equipment working pressure————30Mpa



The cylinder maximum thrust———-540T



The The cylinder effective stroke——-400mm



The side cylinder maximum thrust——–480T*2



The side cylinder effective stroke——-200mm



Ejection cylinder maximum thrust——–8T



Total power——–50KW



Machine size ——–L* S*H—————2330*940m*2365m



Total weight———≈14T



Description

1.Technical parameters

Max process Tee—————114mm
Min process Tee—————21mm
Max thickness ————-5mm
Equipment working pressure————30Mpa
The cylinder maximum thrust———-540T
The The cylinder effective stroke——-400mm
The side cylinder maximum thrust——–480T*2
The side cylinder effective stroke——-200mm
Ejection cylinder maximum thrust——–8T
Total power——–50KW
Machine size ——–L* S*H—————2330*940m*2365m
Total weight———≈14T
2.The whole machine structure

Frame body, pressing oil cylinder, side push oil cylinder, ejection cylinder, hydraulic system, water injection system, electrical system.

Adopt the combination of welded structures, the hydraulic system adopts domestic high-quality products integrated control method,

make the host smooth operation and low failure rate.

3.mainframe

No Name Model QTY Note
1 up press oil cylinder oil cylinder ID:480mm
oil cylinder OD:610mm
Oil cylinder rod diameter:800mm
effective stroke:400mm
1piece Ta’an dongyue
2 Side thrust oil cylinder oil cylinder ID:450mm
oil cylinder OD:570mm
Oil cylinder rod diameter:370mm
effective stroke:240mm
2pieces
3 Ejection cylinder oil cylinder ID:80mm
oil cylinder OD:102mm
Oil cylinder rod diamete:40mm
effective stroke:200mm
1piece
4 Mainframe body Q235Medium plate welding(thickness50mm)
5 Oil cylinder guide bar Φ50 round steel 4pieces
6 base plate Q235Medium plate welding(thickness40mm) 2pieces



4.Hydraulic parts :

Item name Model QTY Note
1 Oil box 1500*1000*1000 1pcs 10 mm on the cover plate, side 4 mm plate
1 axial plunger pump 80SCY14-1B 2sets Shanghai high pressure pump valve manufacture co., LTD.
2 Gear pump CBE-E16 1set Shanghai high pressure pump valve manufacture co., LTD.
3 3phase motor Y2-22KW 2sets Boshan ship motor co., LTD
4 3phase motor Y2-4KW 1set Boshan ship motor co., LTD
5 Cartridge manifold block YS-500 1set Cartridge valve main control system
6 Auxiliary hydraulic parts 1set Jinan chaoyue



5 CNC automatic control electric appliances:

item Name Model QTY Note
1 Electrical control cabinet YST-50 1set
2 Electrical control box YST-50 1set
3 The host control low-voltage electrical appliances YST-50 1set Chint electric
4 operation interface 1pcs Delta
5 PLC 1set Delta
