Induction Heating Elbow Making Machine



Main Features

1.Production range: OD 21-1420mm



2.Radius: 1D, 1.5D, 2D



3.Thickness: 3mm-100mm



4.Material: carbon steel



5.Drive type: Hydraulic, Chain



6.Design: Hydraulic pushing Hydraulic clamp



cylinder Automatic lifting material Medium



Frequency heating system All controllings



are in one operation case



Category:

Description

Hot elbow machine
1.Induction heating elbow mandrel bending machine is designed and constructed for manufacturing the small radius (1D/1.5D) carbon steel elbows,alloy steel elbows. Medium Frequency Steel Elbow Machine has various designed ways, can be produce 2 piece of elbows in a time or support producing of elbow as well as 180 degree bend. And also sizes below 60 mm, the machine can automatic working with our PLC control system. These elbows are widely used in the connection of the industrial pipelines for the Petrochemical , gas, oil pipes, electrical power ,etc

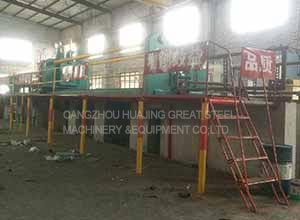

2.Structure:equipment base and guide rail, main oil cylinder and support plate, active push plate, front support plate, loading mechanism, medium frequency coil adjustment mechanism ( medium frequency heating coil, elbow die, mould pull rod), medium frequency power supply heating mechanism, electric control system, hydraulic control system, operation desk , water cooling circulating system.
3.Auxiliary equipments: hydraulic press machine (for elbow shape correct use),pipe cutting machine (we have auto pipe cutting machine ) ,elbow beveling machine (have manual also auto beveling machine ),shot blasting machine . marking machine .
4.We also can offer the elbow machine with auto feeding system ,can save operator ,speed more fast .
Main Features
1.Production range: OD 21-1420mm
2.Radius: 1D, 1.5D, 2D
3.Thickness: 3mm-100mm
4.Material: carbon steel
5.Drive type: Hydraulic, Chain
6.Design: Hydraulic pushing Hydraulic clamp cylinder Automatic lifting material Medium Frequency heating system All controllings are in one operation case
