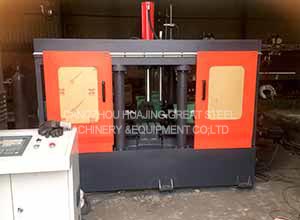

Three Heads Auto Beveling Machine



Equipment performance



1 the beveling mainframe use(GB707-1988)Q235B steel



plate welding to fit the working pressure .



2 the milling power head is use the high level standard power head make



3 main hydraulic station control press material oil cylinder fix ,



keep pressure and loose .



4 oil tank is Q235—4mm steel plate welding combine 0.7M*0.6M*0.6M



square oil tank box one piece the cubage is 0.28m3, working media L-HM46



anti-wear hydraulic oil.



5 hydraulic station motor :1set



3.6 gear pump 1set



Category:

Description

Specifications
Tee Beveling Machine could bevel the tees ranging from 1/2″ to 48″ with different materials.
1.The HJ series hydraulic tee beveling machine has the features of unique design, compact

structure beautiful look and convenient to operate.
It is an ideal equipent for beveling both equal and unequal tees of size from 1/2″to 48″.
There are three cutters for each clamp disk, they serve for different range of work and can work at

the same time to ensure the effective cutting and fully satisfied the stable requirements of the guide

track under the status of strong cutting.Its cutting speed are adjustable in according to the size

and the thickness of elbowsThe products processed by the machine are comply with relevant elbow

beveling standard.


2.the whole machine
Frame base 、The sliding base、Milling power head、fixture table ,hydraulic system, Electrical system、fixture moulds .
3.Equipment performance
3.1 the beveling mainframe use(GB707-1988)Q235B steel plate welding to fit the working pressure .
3.2 the milling power head is use the high level standard power head make
3.3 main hydraulic station control press material oil cylinder fix ,keep pressure and loose .
3.4 oil tank is Q235—4mm steel plate welding combine 0.7M*0.6M*0.6M square oil tank box one piece the

cubage is 0.28m3, working media L-HM46 anti-wear hydraulic oil.
3.5 hydraulic station motor :1set
3.6 gear pump 1set
4.CNC system
Cabinet body adopt JJT sheet make ,control electrical appliance(Star delta start)Domestic high level quality components

are adopted,PLC control with automatic , point move ,manual three operate way,working cost low ,all the button all

pit on the control cabinet ,easy to control .
5.fixture
Use Q235 steel plate welding ,nicety process.
